How To Build a Deck With Patio Underneath: Complete Step-by-Step Guide

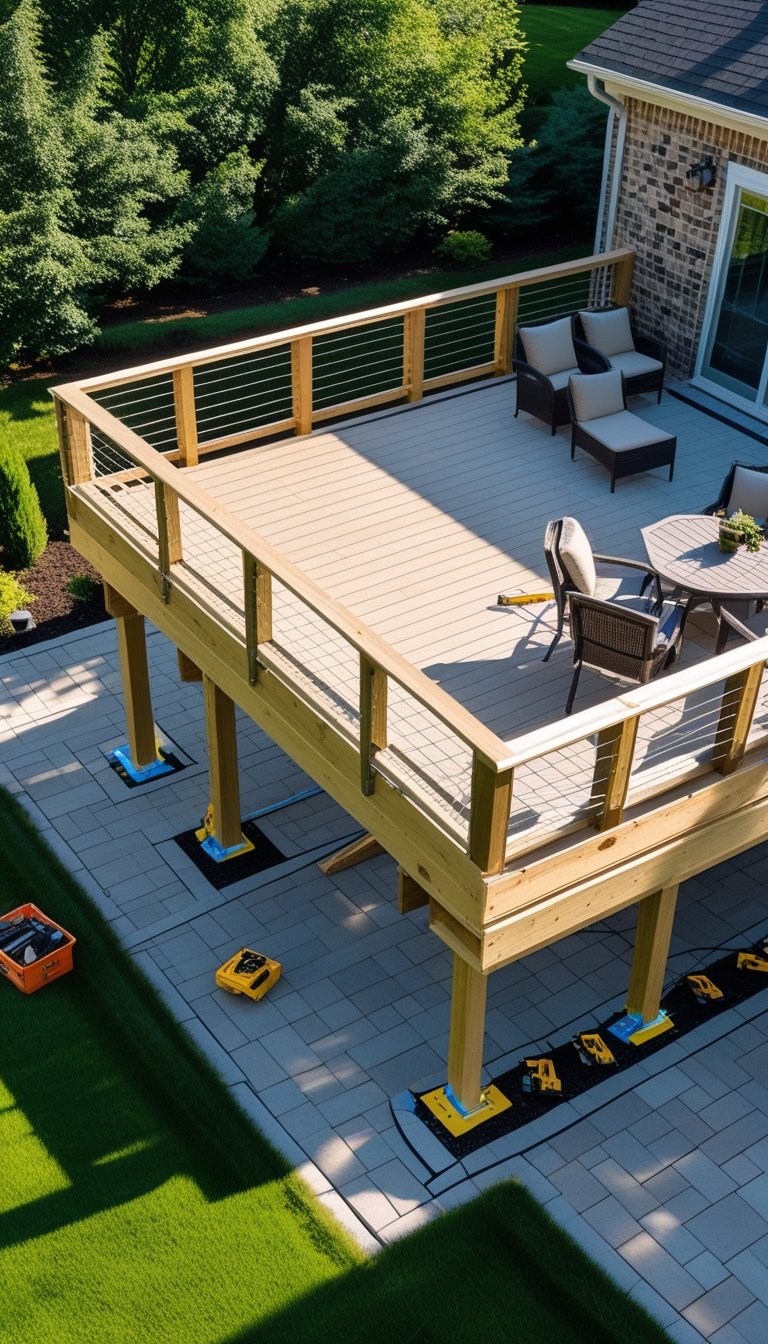

You can build a deck with a patio underneath by creating a raised deck structure and using the shaded space below for a finished ground-level patio. When you design the frame for proper support and drainage, you turn one footprint into two functional outdoor living spaces.
This setup gives you an elevated area for dining or grilling and a protected patio below for seating, storage, or a quiet retreat. You make better use of your yard without expanding your home’s footprint. With smart planning, durable materials, and solid construction, you create a layout that feels intentional and practical.
When you approach the project with a clear plan, you control how the space looks and works. You choose finishes, lighting, and layout details that fit your home and daily life.
Key Takeaways
- Plan the structure carefully to support both the deck and the patio below.
- Choose durable materials that handle weather and moisture.
- Add lighting, drainage, and simple design features to improve comfort and use.

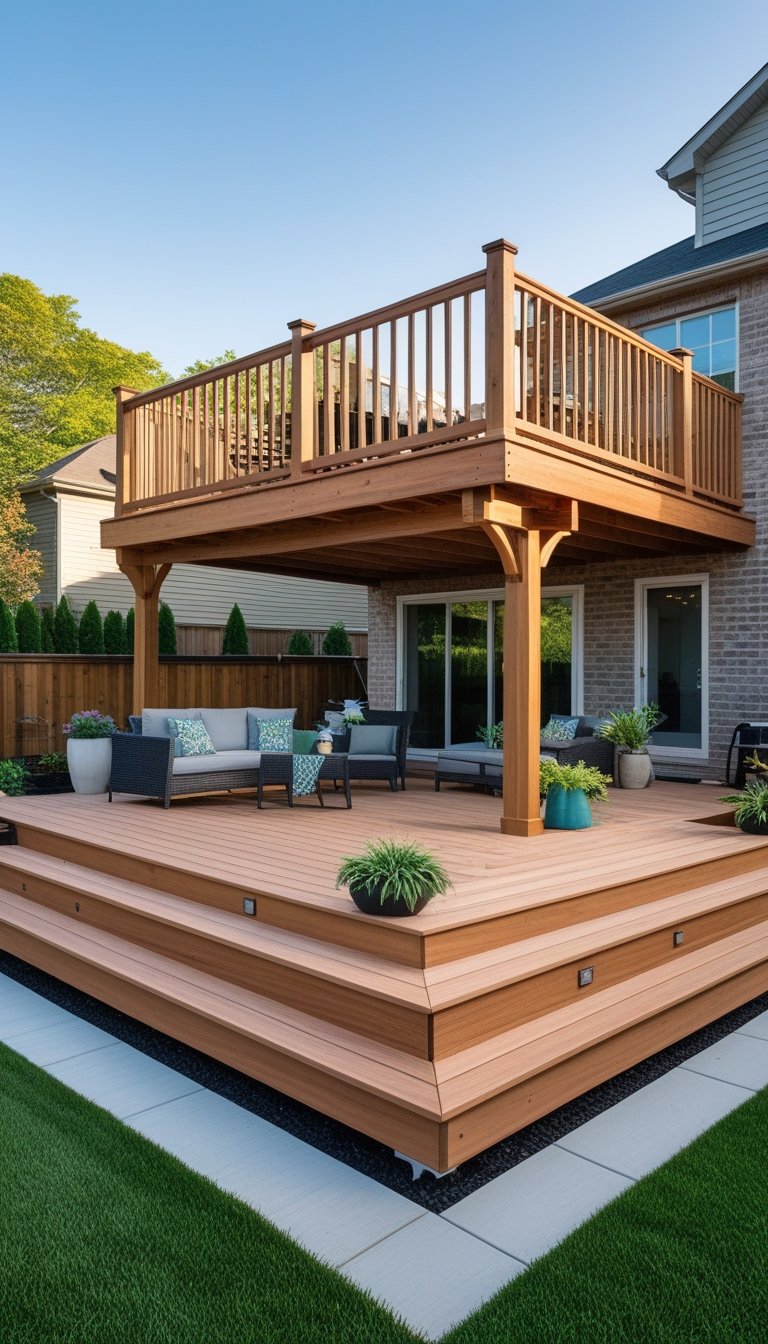

Planning Your Deck and Patio Combo
You need a clear plan before you build a deck with a patio underneath. Focus on space, function, and rules so your multi-level outdoor space works well and passes inspection.
Assessing Space and Layout
Start by measuring the full footprint of your deck and the ground area below it. Record the width, depth, and height from ground to joists.
You need at least 6 to 8 feet of headroom for a usable patio. Less than that will feel tight and limit lighting and fan options.
Check the slope of your yard. If the ground tilts toward your home, plan for grading or drainage before you build.
Think about traffic flow. Place stairs where people can move easily between the upper deck and lower patio. Many deck and patio combo ideas show stairs along the side to keep the center open for seating.
Also review support posts and beams. Their placement affects furniture layout and may limit large features like an outdoor kitchen.
Establishing Your Outdoor Living Goals
Decide how you will use each level of your multi-level outdoor space. Clear goals shape the layout and materials.
Common uses include:
- Upper deck: grilling, dining table, direct access to the house
- Lower patio: lounge area, fire pit, play space, or shaded seating
If you want year-round use, plan for a waterproof system above the patio. This keeps rain from dripping through deck boards.
You may also add lighting, ceiling fans, or heaters under the deck. A covered lower space often works well for these features. Many homeowners choose this setup after seeing projects like those in this deck with patio underneath design guide.
Set a budget early. Include framing, decking, drainage, patio base materials, and finishes.
Understanding Local Building Codes
You must follow local building codes before you start construction. These rules protect safety and property value.
Check requirements for:
- Footing depth and size
- Post and beam spacing
- Railing height and stair design
- Permits and inspections
Most cities require a permit for an elevated deck. If you add a roof system or electrical wiring for lights and outlets, you may need separate approvals.
Call your local building department and ask for written guidelines. Codes can set minimum clearances, load ratings, and setback distances from property lines.
If you ignore these rules, you may face fines or be forced to remove the structure. Always confirm details before you buy materials or pour footings.
Choosing Materials for Durability and Style
You need materials that handle moisture, weight, and daily use. Your deck and the patio below must resist rot, rust, and shifting over time.
Pressure-Treated Lumber vs. Composite Decking
You will likely choose between pressure-treated lumber and composite decking for the deck surface. Each option affects cost, maintenance, and long-term performance.
Pressure-treated lumber costs less up front. It resists rot and insects because manufacturers treat it with preservatives. You must seal or stain it every 1–2 years to control cracking and warping.
Composite decking blends wood fibers and recycled plastic. It costs more at the start, but you avoid yearly sealing. Many homeowners choose it for low upkeep, as explained in this guide to best deck building materials.
If you build a deck with a patio underneath, moisture control matters. Composite decking resists water damage better, but you must follow proper spacing rules for drainage and airflow.
Deck Boards and Deck Screws Selection
Your deck boards must stay flat and secure over time. Board thickness, spacing, and fastening method all affect durability.
Choose boards rated for 16-inch joist spacing unless you frame closer at 12 inches. Narrower spacing reduces bounce and helps support furniture and foot traffic.
For fastening, use coated or stainless steel deck screws. Avoid basic drywall screws. They corrode fast and can snap under load.
Consider these fastener options:
- Stainless steel screws for coastal or wet climates
- Polymer-coated screws for treated lumber
- Hidden fastener systems for composite decking
Hidden clips create a clean surface and reduce water traps. Screws driven flush, not over-tightened, prevent splitting and surface damage.
Patio Flooring Options: Concrete, Pavers, Gravel
The patio under your deck must handle shade, runoff, and limited airflow. Your surface choice affects drainage and long-term stability.
A concrete patio creates a solid, low-maintenance base. You can slope it slightly away from the house to control water. It works well if you plan to add furniture or an outdoor kitchen.
Concrete pavers offer more flexibility. They allow small ground movement without cracking the whole surface. You can replace one damaged paver instead of tearing out the entire patio.
Gravel costs less and drains well. It works best when you install landscape fabric and edge restraints to prevent shifting.
For a deeper look at surface comparisons, review this guide on how to choose the best material for your deck or patio.

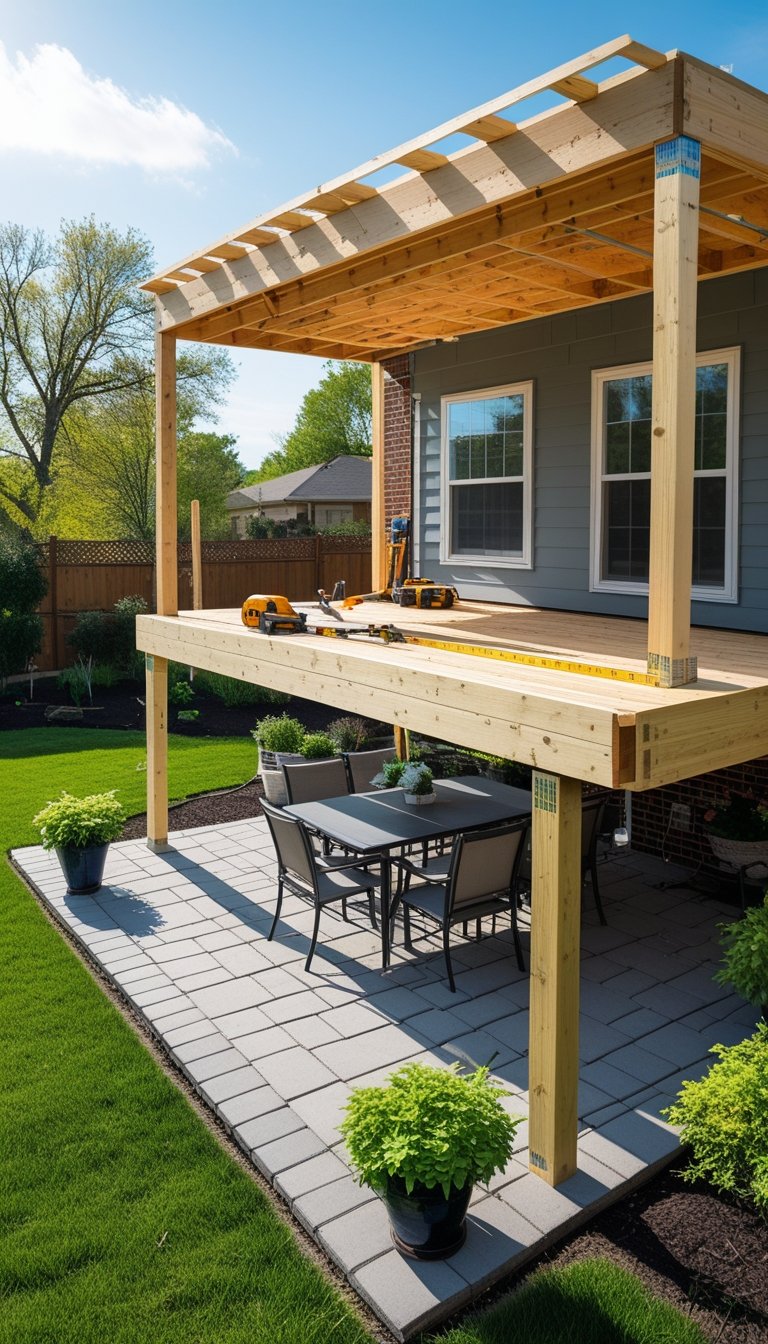

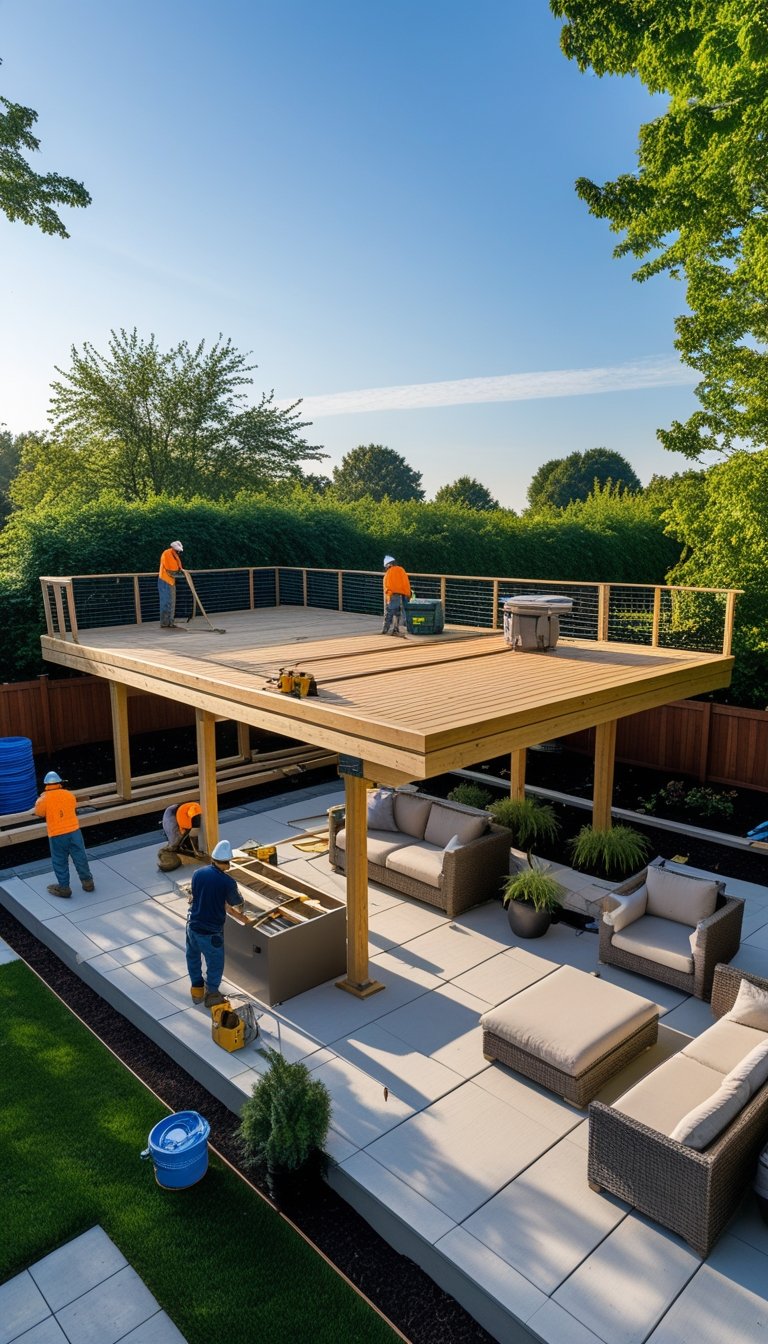

Building the Elevated Deck
Build your elevated deck on a solid base, frame it with care, and fasten deck boards the right way. Each step affects strength, safety, and how well the patio underneath stays dry and usable.
Setting Concrete Footings and Structural Support
Start by laying out your deck with stakes and string lines. Mark the exact spots where each post will sit.
Dig holes below the frost line in your area. In most regions, this means at least 36 inches deep, but check local code before you dig. Many areas require permits for a raised deck attached to a house.
Pour concrete footings into each hole. Use cardboard forms if needed to shape the top above ground level. Set anchor bolts or post bases into the wet concrete so you can secure posts later.
After the concrete cures, attach pressure-treated lumber posts to the bases. Keep posts plumb and brace them while you work.
Install a beam across the tops of the posts. Bolt the beam in place using through-bolts, not nails. This beam will carry the weight of the deck and anything placed on it.

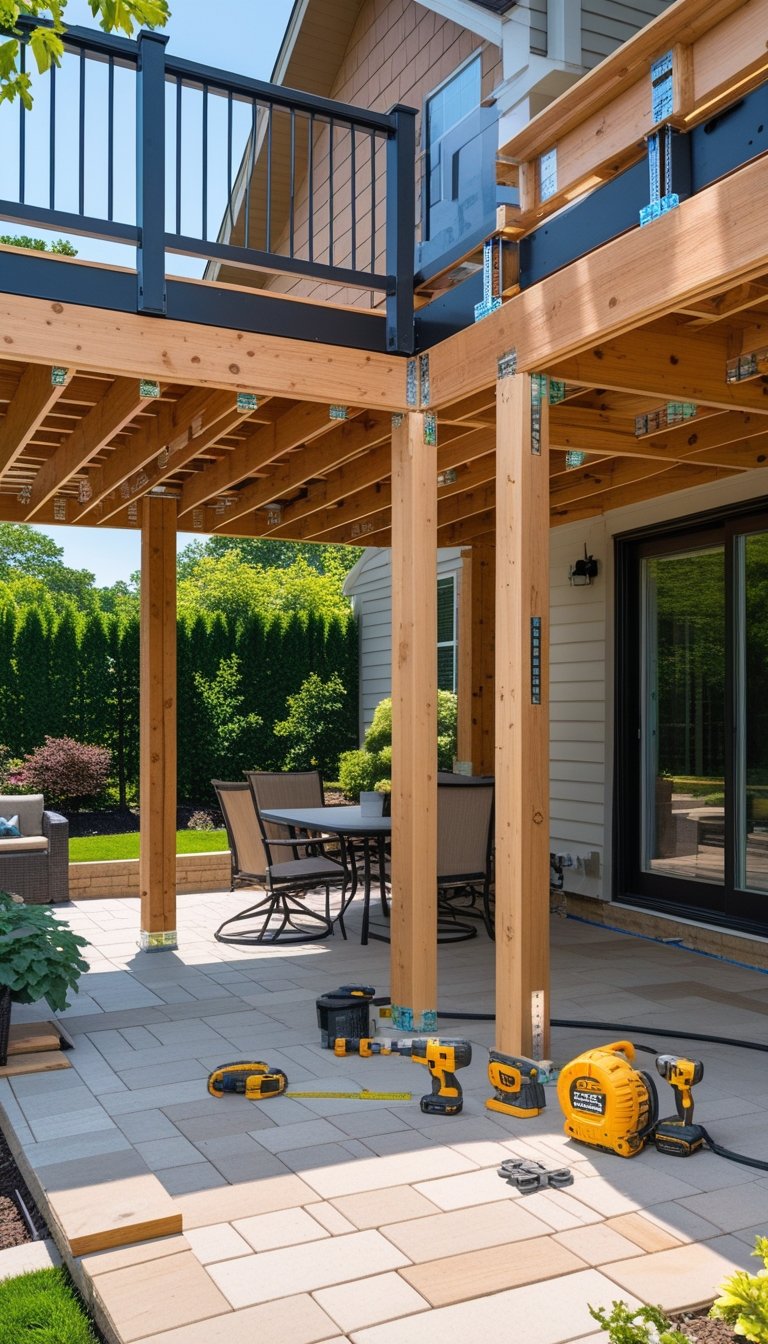

Framing the Deck
Attach a ledger board to the house if your deck connects to it. Use lag screws or structural bolts and add flashing to keep water out.
Set the outer beam in place and confirm it sits level with the ledger. Then install joists between the ledger and beam.
Space joists 16 inches on center for most deck boards. For heavier materials or longer spans, reduce spacing to 12 inches.
Use joist hangers and approved fasteners. Do not substitute standard nails where structural hardware is required.
Add blocking between joists to reduce sway. Check for level across the frame before moving forward.
Key framing parts include:
- Ledger board (attached to house)
- Support beam (on posts)
- Joists (span between ledger and beam)
- Blocking (adds stiffness)
A square and level frame makes the decking step much easier.
Installing Decking Boards
Let your deck boards acclimate to outdoor conditions for a few days before installing them. This helps reduce later movement.
Start at the house and work outward. Place the first board straight and secure it well, since all other boards will follow its line.
Fasten boards with coated deck screws. Screws hold better than nails and reduce squeaks over time.
Leave a small gap between boards, usually 1/8 to 1/4 inch. This gap allows water to drain and air to move, which helps protect the patio underneath.
Stagger end joints so they do not line up on the same joist. Cut boards cleanly and seal exposed ends if required by the manufacturer.
As you install each row, check alignment often. Small errors grow quickly across a wide elevated deck.

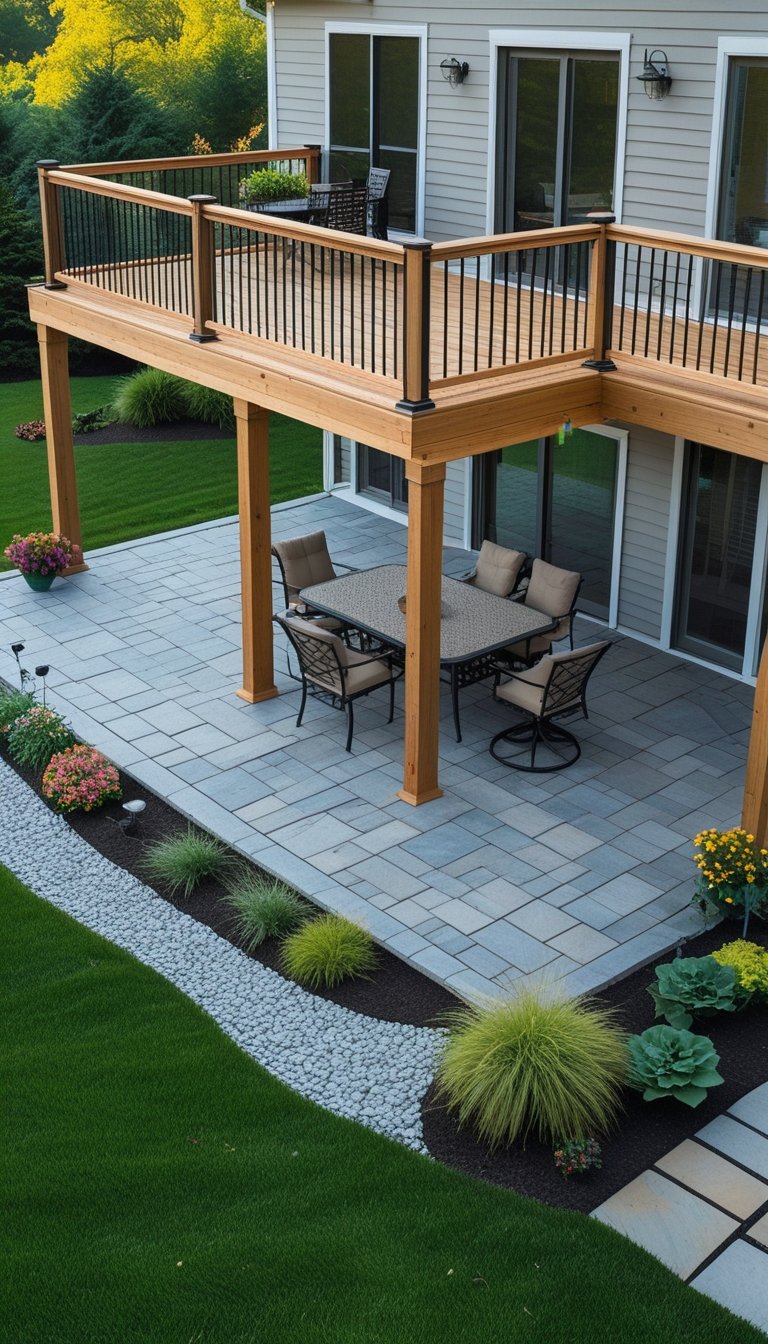

Constructing the Patio Underneath
You need a solid base, proper framing, and reliable deck drainage to make the space usable in all weather. Focus on ground prep, strong materials like concrete pavers, and a system that moves water away from your home.
Preparing and Leveling the Ground
Start by clearing all grass, roots, and debris from the area under your deck. Mark the patio edges with stakes and string so you keep straight lines.
Dig down 6 to 8 inches, depending on your soil type. If the soil feels soft or holds water, dig deeper and add more base material.
Add 4 to 6 inches of compacted gravel or crushed stone. Use a hand tamper or plate compactor to press it firmly in place. The base must feel hard and stable under your feet.
Create a slight slope of about 1/4 inch per foot away from your house. This slope directs water away from the foundation and prevents pooling under your under-deck patio.
Check the surface with a long level before moving forward.

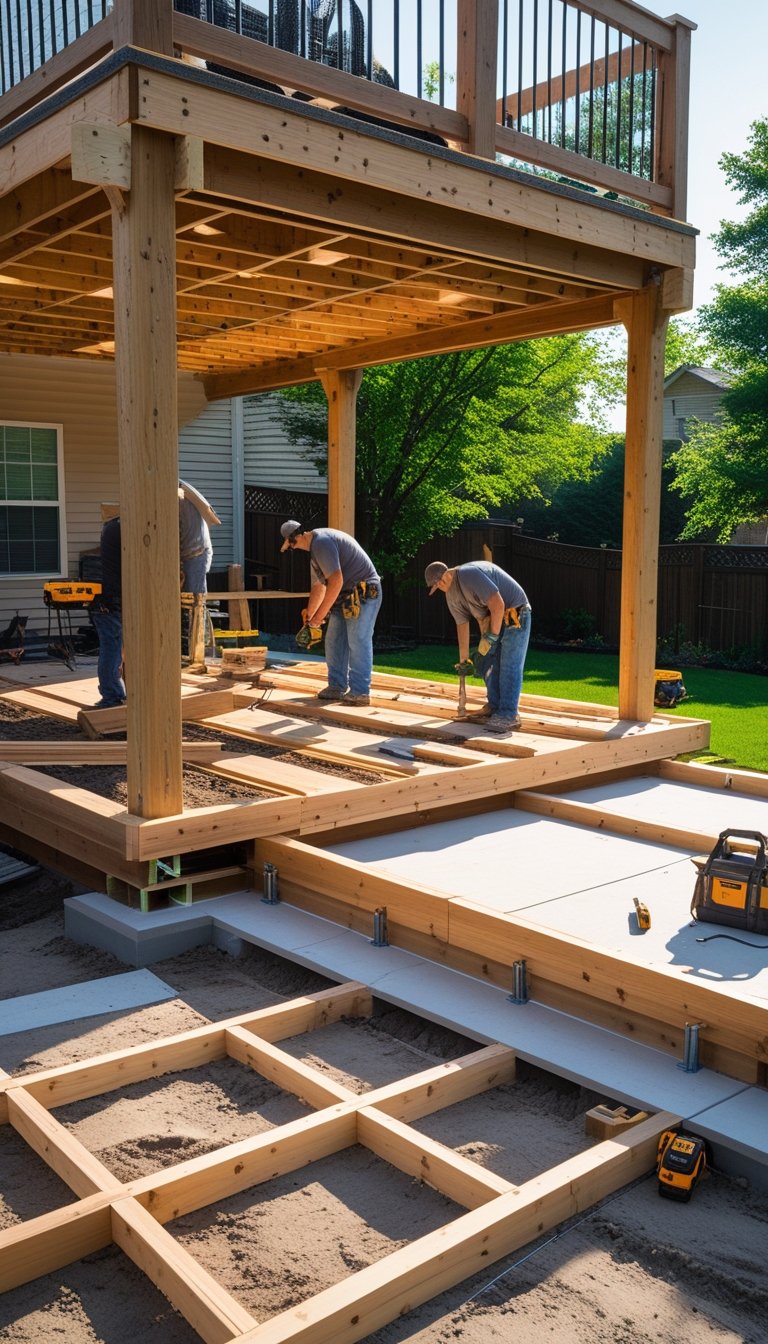

How to Build a Patio Under a Deck
Once the base is compacted and level, you can build a patio under a deck using concrete pavers, poured concrete, or stone. Many homeowners choose pavers because they install in sections and allow easier repairs.
If you want a step-by-step overview, review this guide on how to build a patio under a deck. The basic process includes laying edge restraints, adding a thin sand layer, and setting pavers in a tight pattern.
Place pavers one at a time and keep joints consistent. Use a rubber mallet to tap each one flat.
After installation:
- Sweep polymeric sand into the joints
- Lightly mist with water to lock them in place
- Recheck slope for proper runoff
Keep the finished patio surface at least a few inches below the bottom of the deck framing to allow airflow.
Drainage Solutions for Under-Deck Patios
Water control matters more here than on an open patio. Rain will pass through deck boards unless you install a deck drainage system.
An under-deck ceiling system attaches beneath the joists and channels water into a gutter. This guide on building an under-deck roof system explains how panels slope toward a collection point.
You can also improve ground drainage by installing:
- A French drain along the outer edge
- Perforated pipe wrapped in fabric
- A gravel trench that directs water downhill
Always connect drainage to a safe discharge point away from your home.
When you manage runoff correctly, your patio under a deck stays dry, stable, and ready for daily use.

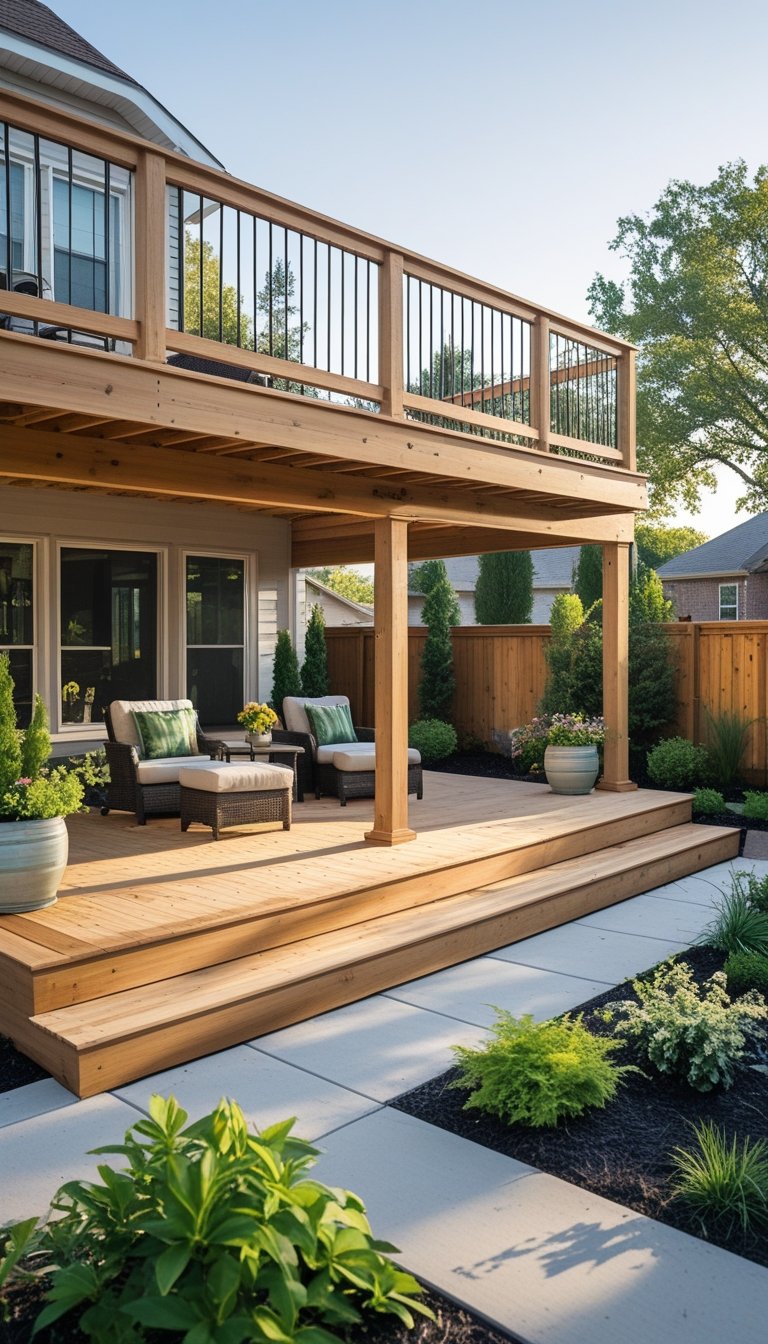

Design Enhancements and Functional Features
Smart upgrades make the space under your deck more useful day and night. Focus on lighting, cooking areas, and privacy so you can use the patio in different seasons and weather.
Lighting: Step Lights and String Lights
Good lighting improves safety and comfort. Install step lights along stairs and edges so you can see each tread at night. Recess them into stair risers or side walls to reduce glare.
Choose low‑voltage LED fixtures. They use less power and last longer.
Add string lights across the ceiling joists or along beams to create even light over seating areas. Use outdoor‑rated lights with sealed sockets. Secure them with clips, not staples, to avoid wire damage.
For best results:
- Space step lights every 3–4 feet.
- Hang string lights at least 7 feet above walking areas.
- Connect lights to a timer or dimmer switch.
If your deck stays exposed to rain, consider a drainage system like those shown in these under-deck living space ideas so water does not drip onto fixtures.
Outdoor Kitchen and Dining Spaces
A covered patio creates a practical spot for an outdoor kitchen. Place grills and cooktops near the outer edge for better airflow. Keep at least 10 feet between heat sources and deck framing.
Use this simple layout guide:
| Feature | Key Requirement |
|---|---|
| Grill | Non-combustible base and side clearance |
| Countertops | Weather-resistant material like concrete or stone |
| Sink | Proper drain line and slope |
| Fridge | GFCI outlet and cover |
Install task lighting above prep areas. Add a ceiling fan if height allows.
Set your dining table where foot traffic will not block cooking zones. Many homeowners turn this space into a full gathering area, as seen in these creative under deck patio ideas.
Choose furniture made from metal, treated wood, or resin wicker so it handles moisture.
Privacy Additions: Lattice Panels and Shade
You can block sightlines and still allow airflow. Attach lattice panels between support posts to create partial privacy. Secure panels with exterior screws and leave a small gap at the bottom to prevent rot.
Paint or stain lattice to match your deck framing.
For shade, extend the deck above with an under-deck ceiling system, or add a pergola at the patio edge. You can also hang outdoor curtains from tension rods for flexible coverage.
To create a more shaded patio, consider:
- Shade sails anchored to beams
- Roll-down outdoor blinds
- Tall planters with dense shrubs
If you want more layout ideas, review these under deck patio ideas to see how others combine privacy screens and seating zones.
Styling and Furnishing Your Outdoor Space
Choose durable furniture and simple decor that fits the size and layout of your deck and patio. Focus on comfort, weather resistance, and lighting so you can use the space day and night.
Selecting Outdoor Furniture
Start by measuring the open area under your deck. Leave clear walkways that are at least 3 feet wide so people can move with ease.
Pick outdoor furniture made for rain and sun exposure. Aluminum, resin wicker, and treated wood hold up well. If the space stays damp, avoid untreated steel since it can rust.
Use this quick guide:
| Area Size | Best Furniture Options |
|---|---|
| Small patio | Bistro set, storage bench |
| Medium space | 4–6 seat dining set, loveseat |
| Large area | Sectional sofa, dining table, bar cart |
Add cushions with removable, washable covers. Choose fabrics labeled for outdoor use.
If you want more ideas for layouts and seating zones, review these under deck patio ideas to see how others arrange dining and lounge areas.
Keep the setup simple. Avoid crowding the space with too many chairs or tables.
Decor and Ambiance Tips
Lighting makes your outdoor living space usable after sunset. Install weather-rated string lights under the deck joists or mount wall sconces along support posts.
Add solar path lights near stairs to improve safety. Good lighting reduces shadows and helps prevent trips.
Soften hard surfaces with an outdoor rug. Choose a rug made from polypropylene since it resists moisture and dries fast.
You can also include:
- Potted plants in sturdy containers
- A small outdoor storage cabinet
- Neutral throw pillows for color
If your deck does not fully block rain, consider adding a ceiling system designed for drainage. Systems shown in these under-deck living space ideas help keep the patio area drier and more comfortable.
Stick with two or three main colors. This keeps the space clean and organized instead of busy.
Frequently Asked Questions
Building a raised deck with a patio underneath requires careful planning. You must follow local codes, design strong framing, and control water so the space below stays dry and usable.
What permits and building code requirements apply to building a raised deck over a patio area?
You usually need a building permit for a raised deck. Most cities require permits for decks attached to a home or built above a certain height, often 30 inches.
Your local code may set rules for footing depth, post size, beam spans, joist spacing, railing height, and stair design. Many areas follow versions of the International Residential Code, but your city can add stricter rules.
Before you dig, call your local utility marking service to locate buried lines. Submit a plan that shows footing size, framing layout, and connection details, then schedule inspections during footing and framing stages.
How do you design the framing and joist layout to support both a deck and a dry space below?
Start with proper footings and posts sized for the full load of the deck, furniture, and people. Use pressure-treated lumber rated for ground contact where needed.
Space joists based on your decking material. Many wood decks use 16 inches on center, while some composite boards require 12 inches for added stiffness.
If you plan to add an under-deck drainage system, keep joist bays clear of blocking that would interfere with panels or troughs. Plan beam placement and ledger attachment so water can move toward a gutter without obstruction.
What are the best under-deck drainage systems to keep the patio underneath dry?
You can choose between above-joist and below-joist systems. Above-joist systems install on top of the joists before you lay decking and direct water into gutters.
Below-joist systems attach under existing decks and use sloped panels or troughs to catch water. Many homeowners review options in guides like this overview of an under deck patio setup.
Choose a system that fits your deck height and budget. Make sure it directs water away from the house foundation.
Which materials work best for an under-deck ceiling, and how do you choose between panels and soffit-style systems?
Common materials include vinyl panels, aluminum panels, and exterior-grade plywood with waterproof coating. Vinyl resists moisture and needs little upkeep.
Panel systems often lock together and slope toward a gutter. Soffit-style systems create a finished ceiling look and can hide wiring for lights and fans.
If you want a clean, finished space, ceiling panel systems work well. If you focus on cost and easy access to joists, removable panels may fit better.
How do you install under-deck roofing or ceiling panels while maintaining proper slope and runoff?
Create a consistent slope away from the house. Many systems require about 1/8 to 1/4 inch of drop per foot to move water toward a gutter.
Attach support rails or brackets to the joists at the correct angle. Check the slope with a level as you work.
Install a gutter at the low end to collect water. Direct the downspout away from the patio and foundation to prevent pooling.
What are effective under-deck lighting and finishing ideas to make the patio underneath usable year-round?
Install outdoor-rated LED lights between ceiling panels or along beams. Add a switch inside the house for easy control.
Use ceiling fans rated for damp or wet locations to improve airflow. In cooler climates, consider an electric infrared heater approved for outdoor use.
Finish the patio floor with concrete, pavers, or a compacted gravel base. Many homeowners add features inspired by projects like this guide on how to build a patio under a deck to create a more functional space.
