How to Build a Deck Railing: Codes, Styles, and DIY Steps
Building a deck railing improves safety and gives your deck a clean, finished look. You do not need advanced skills, but you do need careful planning, solid materials, and the right tools. You build a deck railing by installing secure posts, attaching top and bottom rails, and fastening balusters with proper spacing to meet local code.
Before you start, you need to understand railing height rules and spacing limits to keep your deck safe and up to code. You also need to choose the right material, such as pressure-treated wood, composite, or metal, based on your budget and style. Each option affects how you measure, cut, and secure the parts.
This guide walks you through planning, tool setup, and clear step-by-step installation. You will also learn how to handle stairs, add custom details, and protect your railing with the right finish so it lasts for years.
Understanding Deck Railing Codes and Safety
You must build your deck railing to meet clear safety rules. Height, baluster spacing, and post spacing all affect whether your deck passes inspection and protects people from falls.
When a Deck Railing Is Required
Most local building code rules require a deck railing when the walking surface is more than 30 inches above the ground. You measure this distance from the ground directly below the deck edge.
If any part of your deck rail sits over a slope, measure from the lowest point within 36 inches out from the edge. Inspectors focus on the vertical drop, not just the height at one corner.
Stairs also need protection. If your deck includes stairs with more than a few risers, you must install a graspable handrail in addition to the guardrail.
Always confirm details with your local building office. You can review common national standards in this guide to deck and porch guardrail construction and codes, but your local building code has final authority.

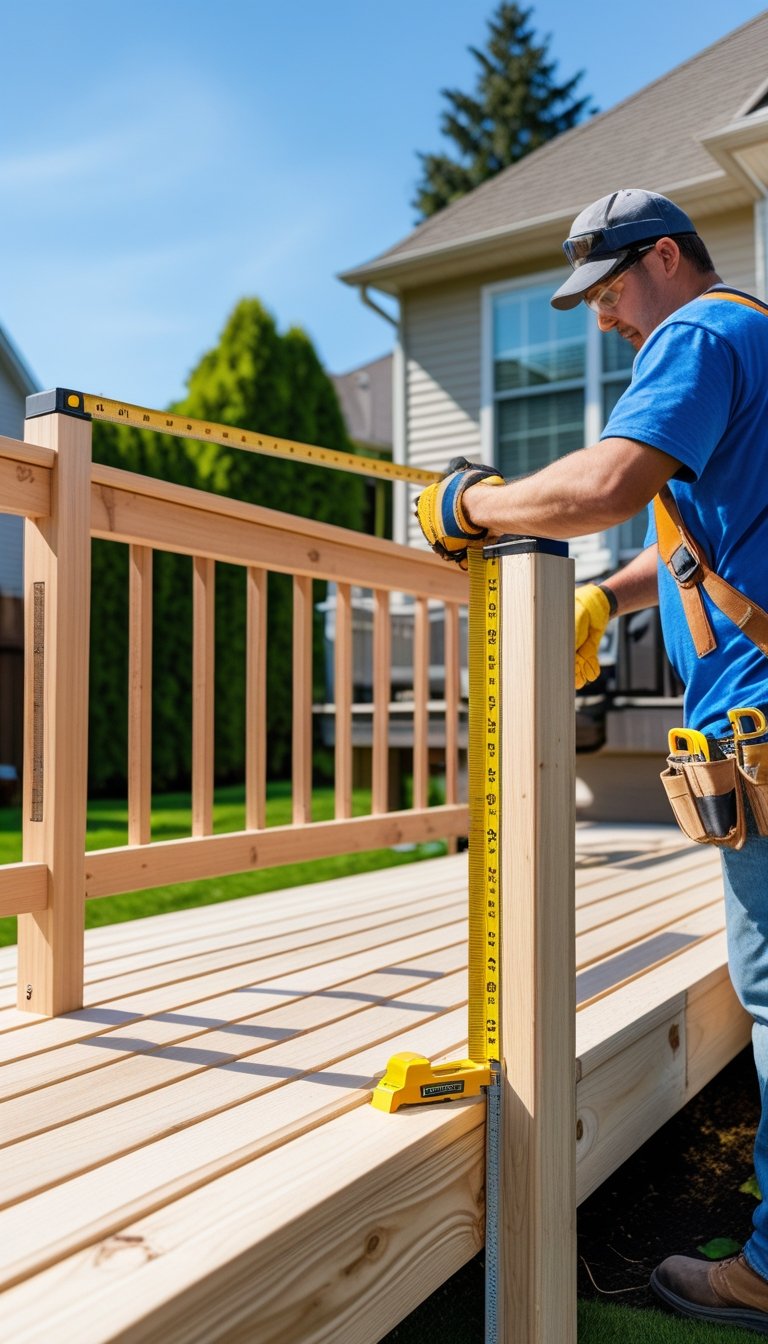

Standard Height and Baluster Spacing
Most residential decks require a minimum guardrail height of 36 inches. Some areas require 42 inches, especially for multi‑family or commercial buildings.
Measure from the deck surface to the top of the deck rail. The top rail must meet the minimum height across the entire span.
Baluster spacing must prevent a 4-inch sphere from passing through. This means the clear space between balusters cannot exceed 4 inches at any point.
Follow these key limits:
- Guardrail height: usually 36 inches minimum
- Baluster spacing: less than 4 inches clear space
- Bottom gap at deck surface: typically no more than 4 inches
These limits reduce the risk of a child slipping through or getting stuck. Many inspection failures happen because builders measure center-to-center instead of clear spacing.
You can compare general requirements in this overview of deck railing height codes and requirements.
Post Spacing and Placement
Post spacing affects strength more than appearance. Weak post connections cause many deck railings to fail under pressure.
Most codes allow posts spaced 6 to 8 feet apart, depending on design and materials. Shorter spans increase strength and reduce rail flex.
Attach posts to the deck frame, not just the rim board facing. Use through-bolts or approved hardware. Avoid relying only on lag screws driven into end grain.
The railing system must resist a 200-pound concentrated load applied at the top rail. This rule ensures your deck rail can handle someone leaning or falling against it.
Place posts at:
- All corners
- Each stair transition
- Both sides of gate openings
- Intervals within allowed spacing limits
Strong placement and secure fastening matter more than decorative details.
Common Code Mistakes to Avoid
Small errors can cause inspection delays. Many deck railings fail because builders overlook simple measurements.
Common mistakes include:
- Installing balusters more than 4 inches apart
- Leaving a large gap under the bottom rail
- Setting guardrail height below the minimum
- Spacing posts too far apart
- Fastening posts only to deck boards
Do not notch posts in a way that weakens them at the connection point. Many older methods no longer meet current local building code standards.
Measure twice before you cut or fasten. Confirm your layout before installing multiple sections. Careful planning helps your deck railing pass inspection and perform as intended.
Choosing Materials and Railing Types
The material you choose affects cost, strength, and long‑term care. You also need the right parts—posts, balusters, rails, and hardware—to build a deck rail that meets code and holds up to weather.
Pressure-Treated Lumber and Wood Options
Pressure-treated lumber remains one of the most common choices for a wood deck railing. Builders treat this lumber to resist rot and insects, which makes it suitable for outdoor use. It costs less than most other railing materials and is easy to cut and fasten with standard tools.
You must seal or stain pressure-treated lumber to limit cracking and warping. Plan for regular maintenance every few years. Use corrosion-resistant deck screws or galvanized screws because treated wood can corrode plain steel fasteners.
Other wood options include cedar and redwood. These woods resist decay better than standard pine and offer a cleaner look. Many homeowners review different types of deck railings before choosing a wood system that matches the deck surface and home style.
Composite, PVC, and Metal Railings
Composite decking brands often sell matching railing systems. Composite railings blend wood fibers and plastic. They resist rot and do not require staining or painting. You clean them with soap and water.
PVC railing, also called vinyl or pvc railings, uses solid plastic parts. It resists moisture and insects and works well in damp climates. PVC railing systems often come in white or neutral colors and snap together with hidden brackets.
Metal options include aluminum and steel. Aluminum resists rust and weighs less, which makes installation easier. Steel feels stronger but weighs more and often uses a powder-coated finish.
Cable railing systems use stainless steel cables instead of traditional balusters. They provide a clear view and fit modern designs. Review the pros and cons of different deck railing materials before you decide.
Balusters, Top and Bottom Rails, and Hardware
Balusters fill the space between posts and support the top rail. Most building codes require spacing that prevents a 4-inch sphere from passing through. Check your local code before you cut materials.
You can choose wood, metal, composite, or cable balusters. Wood balusters match a wood deck railing. Metal balusters offer a slimmer profile and often come prefinished.
The top and bottom rails connect the posts and hold the balusters in place. Use straight, dry boards to prevent twisting. Secure each joint with exterior-rated deck screws.
Avoid drywall screws. They break under load and rust outdoors. Use hot-dipped galvanized screws or coated structural screws for all structural connections.
Selecting Post Caps and Accessories
Post caps protect the top of each post from water damage. Without a cap, water soaks into end grain and causes rot. This problem appears often with pressure-treated lumber.
You can choose wood, metal, or composite post caps. Some caps include built-in LED lights that add visibility at night. Make sure the cap fits tightly over the post size you use, such as 4×4 or 6×6.
Other accessories include rail connectors, brackets, and trim pieces. Use hardware designed for your railing type, especially with pvc railing or cable railings. Matching components help your deck rail look clean and stay secure.
Planning Your Deck Railing Project
Accurate measurements, correct post placement, and a clear style choice shape a safe railing. Careful setup also protects your decking and keeps your work efficient.
Measuring Your Deck Perimeter
Start by measuring the full perimeter of your deck. Use a tape measure and record each side in feet and inches.
Measure from the outside edge of the decking, not the house wall. If your deck attaches to the house, only measure the open sides where railing will go.
Break the layout into straight sections. Write down each section length so you can plan railing runs between deck posts.
Check that your deck frame is square. Measure corner to corner across the deck framing. If the numbers differ, adjust your layout before you install any deck post or railing section.
Mark stair openings clearly. Stairs need their own railing layout and post placement plan.
Determining Post and Baluster Quantities
Strong deck posts support the entire railing system. Plan post placement at corners, stair openings, and along straight runs.
Most codes require posts every 4 to 6 feet. Confirm local rules before you finalize spacing. You can review general spacing guidance in this step-by-step deck railing guide.
Use this simple method:
- Divide each railing section by your chosen post spacing.
- Round down to keep spacing even.
- Add one post at each end of the section.
For balusters, measure the space between two posts. If you use vertical balusters, space them so gaps are no more than 4 inches apart in most areas.
Divide the clear distance by the baluster width plus the gap. Round as needed to keep spacing even. Consistent spacing improves safety and appearance.
Choosing a Railing Style
Select a style that fits your deck framing and home design. Your choice affects materials, cost, and installation time.
Common options include:
- Vertical balusters for a traditional look
- Horizontal rails or slats for a modern design
- Composite or metal systems for lower maintenance
Vertical balusters work well with wood decking and standard deck posts. They also make layout simple because spacing rules are clear.
If you want detailed construction steps for wood systems, review this wood deck railing step-by-step guide.
Match your railing material to your decking. Pressure-treated lumber pairs well with treated deck framing. Composite decking often looks best with matching composite rails.
Preparing the Work Area
Clear the deck surface before you begin. Remove furniture, grills, and planters from the work zone.
Inspect the deck frame and deck framing connections. Tighten loose bolts and screws. Replace any damaged rim joist sections where you plan to attach a deck post.
Mark post placement directly on the decking and rim joist. Use a square to align marks with the deck frame below.
Gather tools and materials in one area:
- Drill and driver bits
- Level
- Circular or miter saw
- Clamps
- Safety glasses and gloves
Keep fasteners and brackets organized. Good preparation reduces mistakes and protects your decking from damage during installation.
Tools and Safety Preparation
You need the right tools and clear safety steps before you start building a deck railing. Accurate measuring, clean cuts, and proper protection will help you avoid mistakes and injuries.
Essential Tools for Railing Installation
Start with a tape measure and a pencil. Measure the distance between posts from center to center, and write the numbers down. Even small errors can throw off your rail spacing.
Use a drill with exterior-grade screws to fasten brackets, rails, and balusters. Keep extra batteries charged if you use a cordless drill. A level is also critical. Check each post and rail as you install it to keep the railing straight.
For cutting, rely on a circular saw or a miter saw. A miter saw works best for clean, square cuts on rails and balusters. A circular saw gives you flexibility for longer boards.
Keep clamps nearby. Clamps hold rails in place while you secure them, which keeps your hands free and improves accuracy.
Basic Tool Checklist:
- Tape measure
- Drill and drill bits
- Circular saw or miter saw
- Clamps
- Level
- Speed square
Choose sharp blades and quality bits. Dull tools can splinter wood and lead to poor fits.
Protective Equipment
Wear safety glasses at all times when cutting or drilling. Sawdust and wood chips can fly without warning. Clear lenses work well in most daylight conditions.
Use sturdy work gloves when handling pressure-treated lumber. The wood can have rough edges and sharp corners. Gloves also improve your grip when carrying long boards.
Wear hearing protection when using a circular saw or miter saw. These tools produce high noise levels that can damage your hearing over time. Closed-toe shoes with thick soles protect your feet from dropped tools or lumber.
Avoid loose clothing and tie back long hair. Moving blades and spinning drill bits can catch loose material quickly.
Handling and Cutting Lumber Safely
Inspect each board before you cut it. Look for cracks, warping, or knots near the ends. Damaged boards weaken your railing and can split during installation.
Set your lumber on a stable surface before cutting. Use sawhorses or a solid workbench. Never cut wood while it rests directly on the deck without support.
Keep both hands clear of the blade path. Let the saw reach full speed before it touches the wood. Move the saw in a steady motion without forcing it.
When drilling, hold the drill straight and apply steady pressure. If the bit binds, release the trigger before pulling it out.
Store lumber flat and off the ground to prevent moisture damage. Dry, straight boards make your railing stronger and easier to assemble.
Step-by-Step Deck Railing Installation
You build a strong railing by setting solid posts, locking in straight rails, and spacing balusters the right way. Focus on tight connections, level lines, and proper fasteners so the railing stays secure over time.

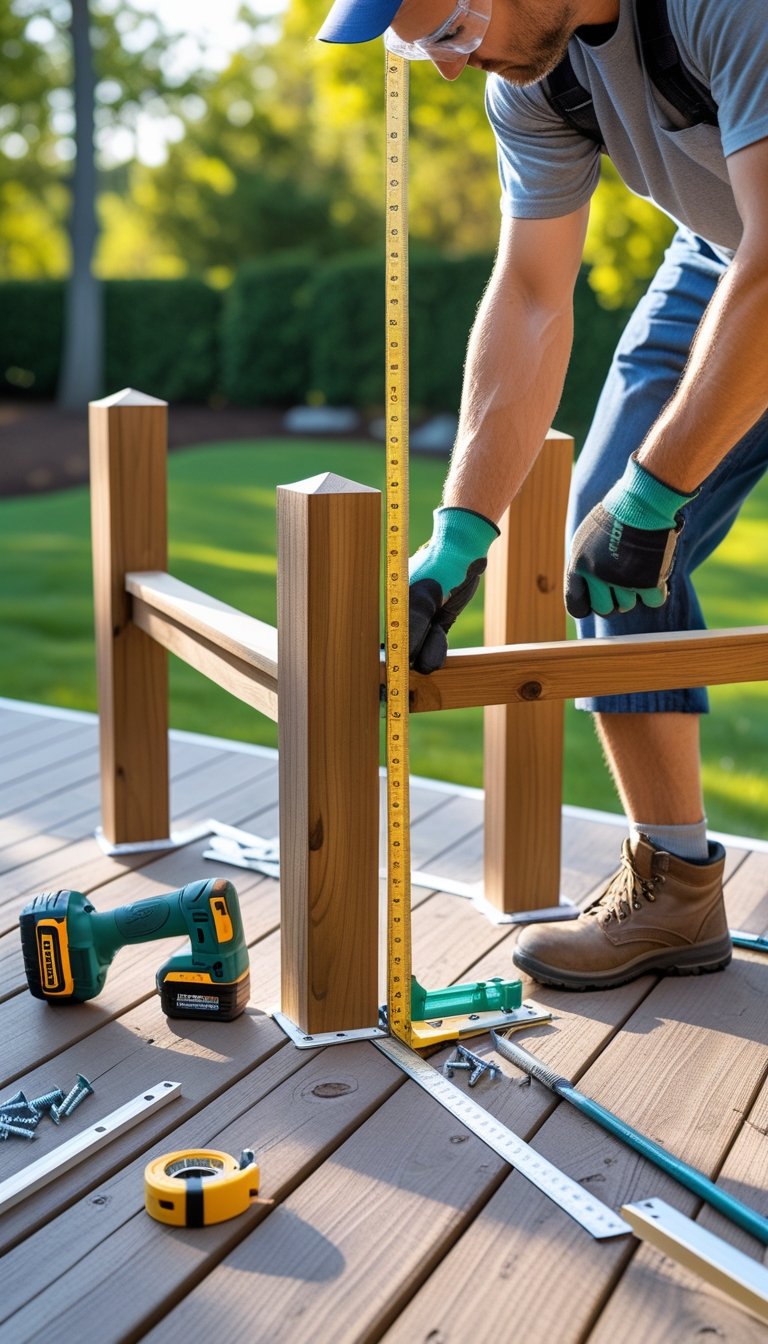

Installing Deck Railing Posts
Start with solid 4×4 posts rated for outdoor use. These deck railing posts must attach directly to the deck frame, not just the decking boards.
Cut each 4×4 post long enough to extend below the decking and above your finished rail height. Most building codes require a railing height between 36 and 42 inches. Add extra length so you can bolt the post to the rim joist or a deck joist.
Hold the post in place and use a level to keep it straight. Mark and pre-drill holes through the post and into the rim joist.
Secure the post with two 1/2-inch galvanized carriage bolts with washers and nuts. Tighten them firmly so the post does not move. For detailed visuals on this process, review this guide on how to build a deck railing.
Space wood railing posts no more than 8 feet apart. Closer spacing adds strength.
Attaching Top and Bottom Rails
Measure the distance between installed posts at both the top and bottom. Posts may not sit perfectly parallel, so measure each location separately.
Cut your top and bottom rails from straight lumber. Many builders use 2×4 boards laid flat or on edge.
Hold the bottom rail in place first. Keep it a few inches above the decking to allow water and debris to pass through.
Pre-drill pilot holes at a slight angle through the rail and into each post. Drive 3- to 4-inch exterior-grade deck screws into the posts.
Repeat this process for the top rail. Make sure it sits level across all posts before tightening the screws. If you want another reference, this overview from This Old House on building a deck railing outlines the basic rail structure.
Securing Balusters
Building codes usually require balusters spaced so a 4-inch sphere cannot pass through. In most cases, that means spacing them less than 4 inches apart.
Measure the open space between posts and divide it evenly. Mark each baluster location on the bottom rail.
Set each baluster upright and flush with the bottom rail. Use two exterior screws at the top and two at the bottom for a secure hold. Drive screws straight to prevent splitting.
You can also build a baluster panel first. Attach balusters to a thin strip, then fasten the full panel between the rails. Lowe’s explains this method in their guide on how to build railings on a deck.
Check alignment often. Crooked balusters weaken the look and structure.
Adding Rail Caps and Post Caps
Install a rail cap along the top rail to create a smooth surface. A wider cap rail also protects the top edge from water.
Cut the cap rail to length and dry-fit it first. Make sure joints land over posts when possible.
Pre-drill holes through the cap and into the top rail. Use corrosion-resistant deck screws long enough to grip but not poke through.
Finish by adding post caps to the tops of each 4×4 post. Secure them with exterior adhesive or screws, depending on the design.
Post caps block water from entering the end grain. Sealing these exposed ends helps reduce rot and extends the life of your deck railing.
Special Considerations: Stairs and Custom Features
Stairs, cable systems, and accessories require tighter measurements and stronger connections than level railings. You must follow code, secure posts with blocking, and choose parts that fit your deck design and daily use.
Building Stair Railings
A stair railing must match the slope of your stairs and meet local building codes. In most areas, the top of the handrail should measure 34 to 38 inches above the stair nosing. Balusters must sit close enough that a 4-inch sphere cannot pass through.
You should bolt stair posts to the stringers with through bolts or structural screws. The bottom post takes the most stress, so add solid blocking between stringers before you fasten it. This step prevents wobble and helps the railing pass inspection. The Deck Stair Railing Installation guide explains common code rules and hardware options.
If your stair railing sits next to a wall, you may need a separate, graspable handrail. Use a rounded profile, not a flat board. Leave at least 1-1/2 inches of space between the handrail and the wall for a safe grip.
Cable and Alternative Railing Systems
Cable railing creates a clean, open look. It works well if you want clear sightlines from your deck to your yard.
You must tension cables correctly. Even though code limits openings to 4 inches, cables can flex under pressure. Install them closer together so they stay within limits when pushed. Many installers follow the spacing guidance shown in this deck stair railing overview, which reviews layout and safety basics.
Use sturdy end posts because cable railings place strong pull forces on them. Reinforce posts with blocking or metal brackets inside the framing. Tighten cables evenly and recheck tension after a few days.
Other options include metal balusters or composite panels. These systems often come in kits, which reduce cutting and layout errors.
Lighting and Post Cap Accessories
Post cap lights improve safety and add subtle light to stairs and landings. You can mount them on 4×4 or 6×6 posts.
Choose low-voltage LED post cap lights for energy efficiency and long life. Run wiring before you attach caps, and protect connections inside the post. Solar caps install faster, but they depend on direct sunlight and may not stay bright all night.
Keep wiring clear of structural bolts and fasteners. Seal all openings to prevent water damage.
You can also add metal caps, decorative tops, or trim bands. Make sure each accessory fits tightly and does not interfere with the strength of your railing posts.
Deck Railing Maintenance and Finishing Touches
You protect your investment by sealing exposed wood, tightening structural parts, and cleaning the railing on a set schedule. These steps keep your wood deck railing safe, stable, and resistant to moisture damage.
Sealing and Protecting Wood
Seal every exposed surface of your wood deck railing, including the ends of balusters and the bottoms of posts. End grain absorbs water fast, especially on pressure treated lumber that has dried after installation.
Start by sanding rough areas and wiping away dust. Apply a quality exterior sealer, stain, or paint made for decks. Follow the label for drying time and temperature limits.
Focus on these areas:
- Post bases where water collects
- Top rails that take direct sun and rain
- Notched post sections that hold structural screws
- Areas around post caps
Post caps help block water from entering the top of 4×4 or 6×6 posts. Choose tight-fitting caps made of wood, metal, or composite. Secure them with exterior adhesive or corrosion-resistant screws.
Reapply sealer every 2–3 years, or sooner if water no longer beads on the surface.
Inspecting Fasteners and Connections
Deck railings fail most often at connection points, not in the middle of a board. Check every post, rail, and baluster connection at least once a year.
Grab each post and push it side to side. It should not move. If it shifts, tighten structural screws or add approved hardware brackets.
Look closely at:
- Lag screws and structural screws
- Metal brackets
- Baluster fasteners
- Rail-to-post joints
Replace rusted or corroded screws with stainless steel or coated exterior fasteners. Do not mix interior screws into outdoor framing. They can snap under load.
If you see cracked pressure treated lumber around a fastener, remove the screw and reposition it slightly. Pre-drill pilot holes to prevent splitting.
Cleaning and Seasonal Upkeep
Wash your deck railings at least once a year. Dirt traps moisture and can stain wood.
Use a garden hose and a mild deck cleaner. Scrub with a soft brush, especially along the bottom rail where debris collects. Avoid high-pressure washing at close range. It can scar wood fibers and shorten the life of your finish.
In fall, clear leaves from around post bases. In winter, avoid piling snow against the railing. Standing moisture speeds up decay, even on treated lumber.
In spring, inspect for peeling paint, loose post caps, and soft spots in the wood. Fix small issues early so they do not turn into structural repairs.
Frequently Asked Questions
Deck railing must meet clear height, spacing, and fastening rules to pass inspection. You need solid post connections, correct baluster spacing, and proper hardware to build a railing that stays secure under pressure.
What are the code requirements for deck railing height and baluster spacing?
Most building codes require deck railings to be 36 to 42 inches high from the deck surface to the top of the rail. Many local codes set 36 inches for residential decks, but always confirm with your local building office.
Balusters must not allow a 4-inch sphere to pass between them. This is known as the 4-inch rule.
Stair railings often have different height rules. Check local code before you build to avoid costly changes later.
You can review basic height and spacing guidance in this step guide from wikiHow’s deck railing instructions.
How do you install deck railing posts securely on an existing deck frame?
Attach posts directly to the deck’s structural framing, not just the deck boards. Fasten each post to the rim joist or blocking with ½-inch galvanized lag screws or carriage bolts.
Use at least two bolts per post. Tighten washers and nuts firmly to reduce movement.
Add solid blocking between joists if the rim joist alone does not provide enough support. Posts must resist side pressure when someone leans on the rail.
Check each post with a level before tightening hardware. A straight post keeps the entire railing aligned.
What is the best way to attach a deck railing to the house or ledger area?
Most deck railings do not attach directly to the house ledger. Instead, you stop the railing at a post near the house wall.
If you must tie into a structure, fasten to framing members, not siding. Remove siding where needed and seal all penetrations to prevent water damage.
Use corrosion-resistant hardware rated for exterior use. Avoid driving screws only into sheathing or trim boards.
How do you build a wood deck railing step by step using standard lumber?
Start by installing 4×4 posts at each corner and at intervals that match your rail length. Pressure-treated wood rails can often span up to 8 feet between posts, but confirm spacing before cutting lumber.
Measure the distance between posts at both the top and bottom. Cut 2×4 or 1×3 boards for top and bottom rails to match that distance.
Cut 2×2 balusters to the correct height. Keep the bottom rail slightly above the deck surface to allow drainage.
Attach the bottom rail first. Then fasten balusters to a spacer strip or directly to the rail before installing the top rail.
You can see a full layout example in this guide on how to build a deck railing from This Old House.
How do you install balusters evenly and meet the 4-inch and 4-ball rules?
Lay out baluster spacing on the bottom rail before you fasten anything. Use a tape measure and mark equal gaps across the span.
Keep the clear space between balusters under 4 inches. Measure from inside edge to inside edge, not center to center.
Many builders use a spacer block cut to the correct width. This keeps each gap consistent.
After you secure the bottom ends, attach the top rail and fasten the balusters in place. Recheck spacing before driving the final screws.
You can review spacing tips in this practical overview from DecksDirect’s DIY railing guide.
What are the key construction details for a strong, durable deck railing system?
Use pressure-treated lumber rated for ground contact when posts connect near exposed areas. Seal all cut ends with exterior paint or caulk to reduce water entry.
Install corrosion-resistant screws, bolts, and connectors. Galvanized or stainless steel hardware lasts longer outdoors.
Keep posts plumb and rails level. Small alignment errors weaken joints and create stress points.
For added strength, avoid relying only on screws driven through deck boards. Tie the railing system into structural framing members for long-term stability.
